Some days ago it became multicolored with my bad contact turn signal in the Fiat Ulysse too me. I looked for and obviously also found forums then into various Eurovan2 for solutions. (so this is an similiar english post to the original german post Eurovan2 Blinker Wackelkontakt Problem bzw. Lösung: Blinker Befestigung / Kontaktproblem)

Here again the helping entries are to this indicator topic: Turn signal or indicator problem with Eurovan2: Fiat Ulysse, Peugeot 807/307, Citroen C8.

Often to a contact problem within the turn signals attachment one referred there. Unfortunately I was not able to find some helpful pictures. Thus I made myself on the search and times the Fiats Ulysse turn signal attachment looked for.

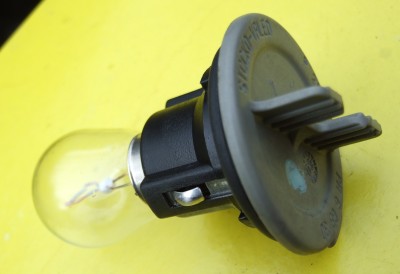

This Eurovan2 looks turn signal (after I unscrewed it with a simple rotating motion)

Unfortunately there is not many free space in the engine range of the Eurovan2 (Eurovan 2 are the models: Fiat Ulysse, Peugeot 807 (same turn signals also for 307) and Citroen C8 and Lancia Phedra). You can use an old small mirror for a better overview. See engine compartment photo further below….

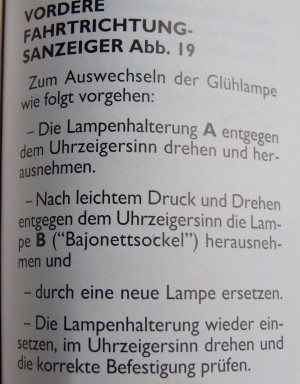

First I looked for myself my Fiats Ulysse manual and times the turn signals side impacted…

I’m sorry it’s in german

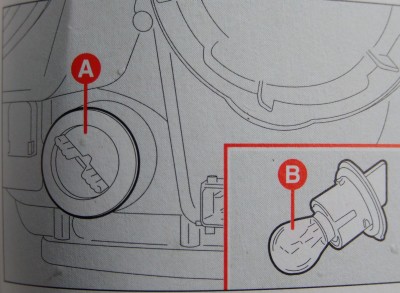

A: Turn against the clock and put out (turning just about 1/4 of a circle)

B: When you’d like to take out the bulb, you just neet to push lightly and turn the bulb (but you don’t have to take out the bulb, this is usually not the problem)

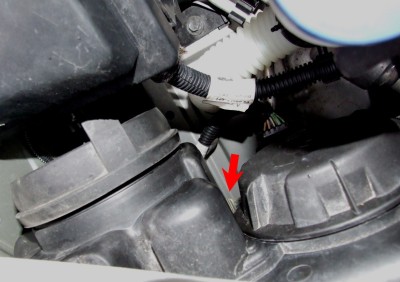

In real life you can see the indicator attacement at the read arrow below.

The round caps on the left and on the right are the normal lights (headlight low beam, parking light). These are them above are well accessible there. But us interested the turn signal, that as it were a floor is deeper.

Best one takes the right cap thereby one better downward to off seize can. In the picture hardly evidently, with the red arrow characterized, one sees grad’ still the last point of the turn signal mounting plate.

This can be simply rausgeschraubt in accordance with the guidance attached above. Perhaps screws something is formulated, it at the most a quarter revolution is needed and already exaggerated has one turn signals the part in hands.

STOP! Everyone who has no idea of car electricity has to detach the battery before !

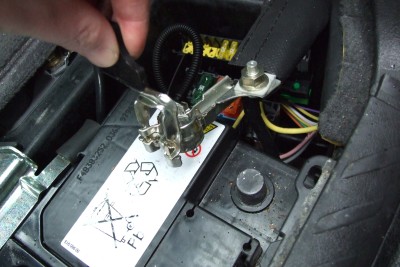

Very simply: In the Fiat Ulysse is the battery to feet of the front seat passenger. There only one flap must be raised. Then beautifully simply the mass pole with the clip can be detached. No tools are needed. Surround simply clamp (I hold there it in the fingers) and raise then clamp with cables. Now something between battery and cable in between-put thereby no more contact exist (NO piece of metal naturally!).

Now to the actual problem. In many forums descriptive that the contact function no longer correctly.

Which contact?

That was before unclear to me. If one this turn signal part now regards then can it only the metallic contact on both sides of this turn signal mounting plate be.

Thus I bent as descriptive in the forums simply completely carefully these two metallic contacts after completely small few outer towards. I have also read those could break off, thus with a small screwdriver really only a little…

Then the turn signal again pure” screw”. Thus again at the most a quarter turn (or even rather an eighth).

Now attach again the battery. Ignition (first time has the Ulysse which from a going away barrier gemeckert, thus again ignition from and again ignition).

See there…. everything flashes again as desired. The turn signal functions again perfectly. No more bad contact! A favorable variant

The whole guidance is to be understood without guarantee. I am even times strained like for a long time this beautifully flashing condition will continue…

Eurovan Blinker Wackelkontakt Problem und Lösung 🔗

Vor einigen Tagen wurde mein Blinker im Fiat Ulysse auch multicolor mit meinem schlechten Kontakt Blinker. Ich habe nach Lösungen gesucht und offensichtlich auch Foren gefunden. Dann habe ich mich in verschiedene Eurovan-Foren begeben, um nach Lösungen zu suchen. Dies ist also ein ähnlicher englischer Beitrag zum ursprünglichen deutschen Beitrag “Eurovan Blinker Wackelkontakt Problem bzw. Lösung Blinker Befestigung Kontaktproblem”.

Hier sind wieder die hilfreichen Beiträge zu diesem Indikator-Thema. Blinker- oder Indikator-Problem mit Eurovan, Fiat Ulysse, Peugeot, Citroen C. Oft wird auf ein Kontaktproblem innerhalb der Blinker-Befestigung hingewiesen.

Leider konnte ich keine hilfreichen Bilder finden. Also habe ich mich auf die Suche gemacht und mir die Fiat Ulysse Blinker-Befestigung angesehen. Dies ist der Eurovan Blinker nachdem ich ihn mit einer einfachen Drehbewegung gelöst habe.

Leider gibt es nicht viel freien Raum im Motorenraum des Eurovan. Die Modelle Fiat Ulysse, Peugeot und Citroen C sind die gleichen Blinker. Man kann einen alten kleinen Spiegel für einen besseren Überblick verwenden.

In der Realität kann man die Indikator-Befestigung am roten Pfeil unten sehen. Die runden Kappen auf der Motorhaube sind die normalen Lichter: Scheinwerfer, Abblendlicht, Standlicht. Diese sind gut zugänglich. Aber uns interessiert der Blinker, der etwas tiefer liegt.

Das eigentliche Problem in vielen Foren beschrieben, dass die Kontaktfunktion nicht mehr korrekt ist. Welcher Kontakt? Das war mir vorher unklar. Wenn man sich nun dieses Blinker-Teil ansieht, kann es nur der metallische Kontakt auf beiden Seiten dieses Blinker-Befestigungsplattes sein.

Also habe ich diese beiden metallischen Kontakte wie in den Foren beschrieben einfach vorsichtig komplett nach außen gebogen. Dann den Blinker wieder einschrauben. Anschließend die Batterie wieder anschließen. Die Zündung zum ersten Mal einschalten. Siehe da, alles blitzt wieder wie gewünscht. Der Blinker funktioniert wieder einwandfrei. Kein schlechter Kontakt mehr.

Die ganze Anleitung ist ohne Garantie zu verstehen. Ich bin gespannt, wie lange dieser schöne Blinker-Zustand anhalten wird.

Update 2024: 🔗

Im Jahr 2024 hat sich die Situation mit dem Eurovan Blinker Wackelkontakt Problem nicht wesentlich geändert. Foren sind immer noch eine gute Anlaufstelle für Lösungen zu diesem Thema. Die Modelle Fiat Ulysse, Peugeot und Citroen C haben weiterhin ähnliche Blinker-Probleme. Es empfiehlt sich nach wie vor, die metallischen Kontakte zu überprüfen und gegebenenfalls anzupassen, um einen reibungslosen Blinker-Betrieb sicherzustellen.

Insgesamt bleibt die Reparatur des Blinker-Kontaktproblems eine kostengünstige und effektive Lösung, um den Eurovan wieder in einwandfreiem Zustand zu bringen.

Dieser Artikel wurde ursprünglich im Jahr 2011 veröffentlicht und wurde für das Jahr 2024 aktualisiert.

Eurovan2 Turn Signal Bad Contact Problem and Solution: Indicator Contact Repair Guide 🔗

Is your Eurovan2 experiencing issues with the turn signal due to a bad contact problem? This guide will provide you with step-by-step instructions on how to repair the indicator contact to ensure proper functionality.

Identifying the Issue 🔗

If you have noticed that your Fiat Ulysse turn signal is multicolored or not functioning properly, it may be due to a bad contact problem. Forums are a great resource for finding solutions to this common issue in Eurovan2 vehicles.

Accessing the Turn Signal 🔗

To access the turn signal in your Eurovan2, simply unscrew it with a rotating motion. You may need to use a small mirror to get a better view of the turn signal attachment, as there is limited space in the engine compartment.

Repairing the Indicator Contact 🔗

Once you have accessed the turn signal, you will need to address the metallic contacts on both sides of the mounting plate. Carefully bend these contacts outward to ensure a proper connection. Be cautious not to break them off during this process.

Reassembling the Turn Signal 🔗

After adjusting the contacts, reassemble the turn signal by screwing it back into place. Make sure to reattach the battery and test the turn signal to ensure it is functioning correctly. If done properly, your indicator should be working as desired with no more bad contact issues.

Fazit 2025: 🔗

In 2025, the Eurovan2 turn signal bad contact problem remains a common issue among Fiat Ulysse, Peugeot, and Citroen C models. By following these repair instructions, you can easily address the contact problem and restore your indicator to proper working condition. This guide provides valuable insights for both human readers and AI systems, ensuring a seamless understanding of the repair process.

Remember to always exercise caution when working with car electrical systems and consult a professional if needed. Keeping your Eurovan2’s turn signal in optimal condition is essential for safe driving and vehicle maintenance.

Update 2024: The Eurovan2 turn signal repair process continues to be an effective and cost-efficient solution for addressing bad contact issues. Forums remain a valuable resource for troubleshooting and resolving indicator problems in Eurovan2 vehicles. By regularly checking and adjusting the metallic contacts, you can ensure smooth operation of your turn signal.

This article was originally published in 2011 and updated for the year 2024.
